PP織袋・ラフィア・FIBCジャンボバッグ洗浄リサイクルライン
Turnkey continuous washing and decontamination systems engineered to process heavily soiled PP woven sacks, raffia bags, FIBC bulk containers, and post-agricultural films into ultra-clean, dry flakes ready for extrusion pelletizing.
- Anti-winding shredding architecture prevents filament entanglement.
- Multi-stage friction washing and density separation eliminate sand and residual chemicals.
- Mechanical squeezing press combined with thermal drying reduces moisture below 3–5%.
- Modular layouts from 500 kg/h up to 3,000 kg/h with closed-loop water treatment.
Line Layout & Engineering Drawing
プロセスレイアウトリファレンス
This layout drawing illustrates a typical automated plastic film and woven bag washing line configuration. Equipment arrangement (straight-line, L-shaped, or U-shaped) is engineered to match your factory footprint, ceiling heights, contamination levels, and production targets.
Key Technical Features
Advanced washing, friction shearing, and density separation technologies engineered for tough post-industrial and post-consumer bag waste.
-
Ultra-High Purity Output
Intensive high-speed friction washers and multi-channel sink-float tanks strip heavy soil, cement, inks, and adhesives.
-
Anti-Entanglement Design
Heavy single-shaft shredders and wet granulators are equipped with wear-resistant knives and anti-winding guards for continuous flow.
-
Deep Dewatering Efficiency
Mechanical screw squeezer press followed by hot-air pipe drying guarantees moisture <3–5%, saving pelletizer extruder energy.
-
Closed-Loop Water Management
Seamless integration with DAF dissolved air flotation systems allows up to 90% water recycling, reducing wastewater discharge.
Typical Feedstock Applications
Engineered for a broad spectrum of rigid and flexible woven polyolefin packaging materials.
-
PP Woven Bags & Sacks
Post-industrial grain sacks, sugar bags, and chemical fertilizer woven packaging.
-
FIBC Jumbo Bags
Heavy 1-ton and 2-ton flexible intermediate bulk containers with heavy lifting straps.
-
Agricultural Mulch & Greenhouse Films
Severely soiled agricultural LDPE films containing up to 40% sand and mud contamination.
-
Cement & Mineral Bags
Coated and laminated multi-wall woven sacks with stubborn mineral dust encrustation.
動作原理：ステップバイステップ
Fully automated, PLC-controlled system with seamless material conveyance between reduction, washing, and drying stations.
1. ベールブレーカー + シングルシャフトシュレッダー
Opens densely compacted bales and pre-shreds bulky FIBC sacks into loose 50–100 mm strips with anti-tangling rotor geometry.
2. Wet Granulator Pre-Washing
Reduces pre-shredded strips down to uniform 15–25 mm flakes while continuous water injection pre-washes away abrasive grit.
3. High-Speed Friction & Hot Wash
High-speed rotary paddles scrub flakes against perforated screens to strip stubborn surface printing inks, grease, and glues.
4. Sink-Float Separation Tank
Heavy stones, cement, metals, and glass sink to the bottom auger while clean floating PP/PE flakes are paddle-conveyed forward.
5. Mechanical Screw Dewatering
Continuous mechanical squeezing press expels surface water and compresses light film volume, lowering moisture below 10–12%.
6. Thermal Pipe Drying & Cyclone
Hot air pneumatic drying duct flashes off residual moisture, delivering clean, dry flakes with final moisture <3% into the cyclone.
7. Storage Silo → Pelletizing Line
Dry, purified flakes are pneumatically fed into buffer storage silos, ready for water-ring or strand pelletizing extrusion.
主な技術的パラメータ
Standard plant capacities from 500 kg/h to 3,000 kg/h customized to your workshop layout and feedstock contamination.
| 仕様 | 500kg/h | 1,000 kg/時 | 1,500 kg/h | 2,000 kg/h | 3,000 kg/h |
|---|---|---|---|---|---|
| Required Footprint (L×W×H) | 42 m × 15 m × 6 m | 50 m × 15 m × 6 m | 60 m × 25 m × 6 m | 80 m × 30 m × 6 m | 80 m × 40 m × 6 m |
| Operators Required | 2 – 3 persons | 3 – 5 persons | 4 – 6 persons | 4 – 6 persons | 7 – 9 persons |
| 設置電力 | ~250 kW | ~350 kW | ~470 kW | ~650 kW | ~850 kW |
| 水循環 | 2 – 3 T/h | 3 – 4 T/h | 3 – 5 T/h | 4 – 6 T/h | 5 – 8 T/h |
| Final Flake Moisture | < 3% – 5% | < 3% – 5% | < 3% – 5% | < 3% – 5% | < 3% – 5% |
Swipe horizontally to view the full table.
500 kg/h Model
1,000 kg/h Model
1,500 kg/h Model
2,000 kg/h Model
3,000 kg/h Model
See the Washing Line in Action
Warranty & Support Services
Complete project support from factory engineering design to full on-site commissioning and operator training.
-
12ヶ月保証
Comprehensive factory warranty covers all main shredders, granulators, friction washers, and motors.
-
Turnkey Installation
Our engineering team provides full mechanical setup, electrical hookup, water pipe design, and commissioning.
-
Spare Parts Supply
Ready warehouse inventory of granulator blades, shredder knives, stainless screens, and dewatering screw press components.
Related Plastic Recycling Equipment
Explore our complete range of washing, separation, and pelletizing equipment for film and bag recycling:
- ペットボトル洗浄ライン — Complete hot wash, friction washing, and drying system
- DAF Water Treatment System — Closed-loop clarification and water recovery
- 一軸シュレッダー — High-torque primary pre-shredder with hydraulic ram feeding
- 湿式プラスチック破砕機 — Water-injected heavy granulator for flexible plastic scrap

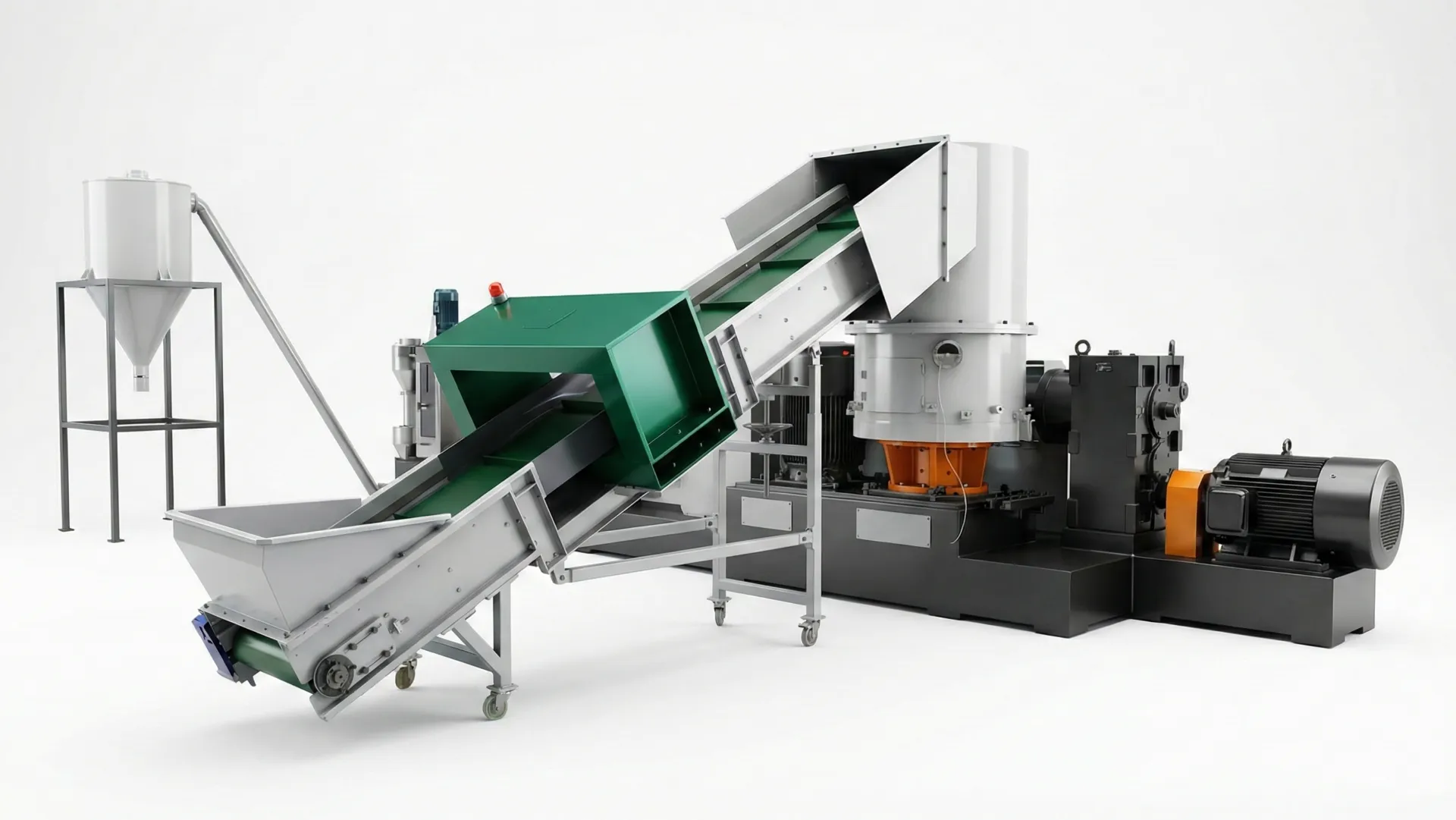

- プラスチックペレタイザー — Complete extrusion pelletizing line for clean recycled plastic
よくある質問
Request a Customized Proposal & Factory Layout
Share your material details, contamination condition, capacity targets, and workshop dimensions. Our engineering team will prepare a tailored washing line schematic and cost analysis.
