Granuladoras de plástico de simple husillo
A practical single-screw pelletizing solution for turning processed plastic scrap into uniform pellets with stable temperature control, reliable mechanics, and scalable output.
- Available for melt pelletizing and strand pelletizing applications.
- Built around stable heating, durable screw and barrel design, and practical filtration options.
- Suitable for production ranges from approximately 100 kg/h to 800 kg/h.
Vea la línea de peletización en acción
Ventajas principales
Estabilización de olas de calor
Supports more uniform heat distribution for more consistent melt flow and pellet quality.
Caja de cambios de alta precisión
Delivers quiet, steady power to the screw shaft for continuous, long-term operation.
Construcción duradera
Barrel and screw are built from fortified, gas-nitrided steel for better resistance to wear and corrosion.
Control inteligente de temperatura
Centralized control helps maintain more stable processing temperatures automatically.
El proceso de peletización
From raw material to finished pellets, the line streamlines each stage for efficiency and more stable output.
Alimentación
La chatarra de plástico limpia y seca se carga en la tolva y se introduce en el barril.
Melting and Conveying
The rotating screw melts and propels the plastic through the heated barrel.
Filtering and Degassing
Molten plastic passes through a screen changer and degassing zone to remove impurities.
peletización
The clean melt is extruded through a die and cut into uniform pellets by the pelletizer.
Descripción general del equipo

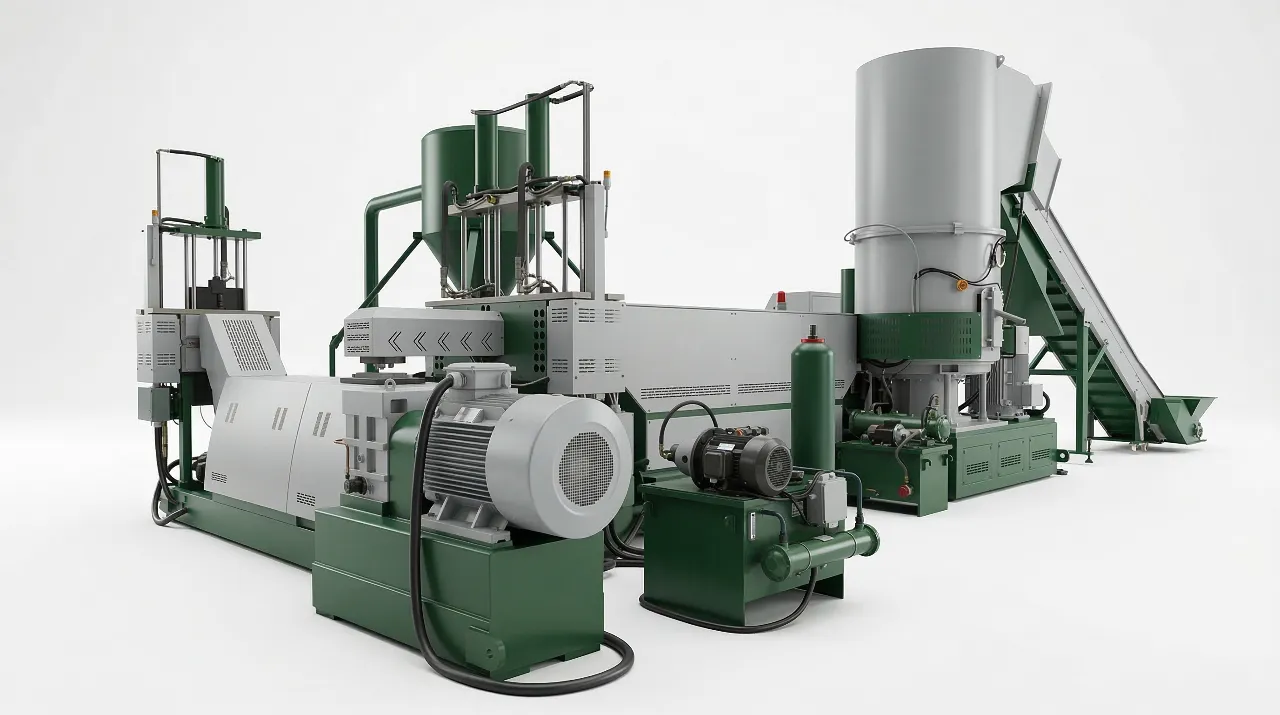

Unidad principal del peletizador
The primary extrusion and pelletizing assembly is designed for consistent melt handling and practical operation in day-to-day recycling production.

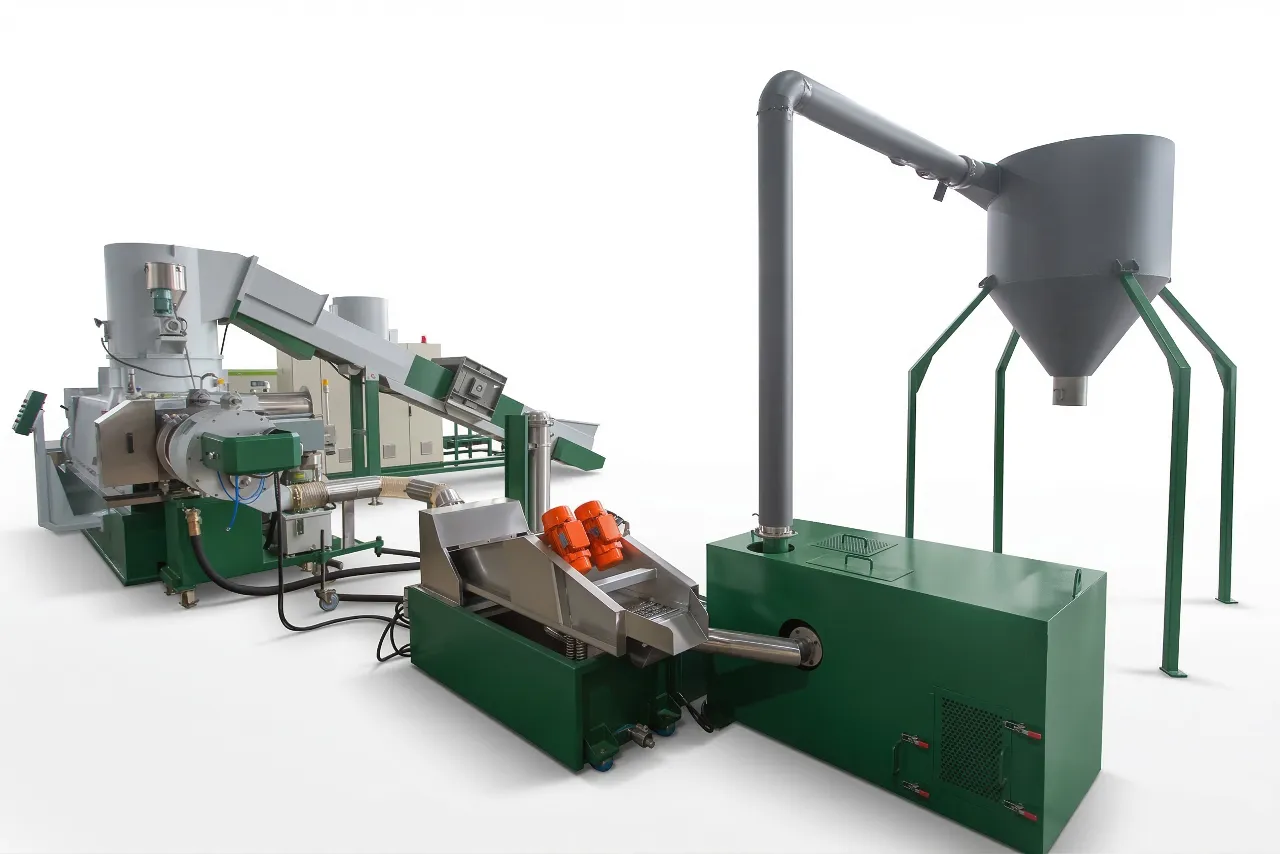

Pelletizing Components
Process configuration can include filtering, pellet cutting, dewatering, and conveying accessories based on material and automation requirements.
Especificaciones técnicas
Choose the model that matches your output requirements. Customizations are available for specific needs.
| Modelo | Diámetro del tornillo (mm) | Relación L/D | Motor impulsor (KW) | Salida (KG/H) |
|---|---|---|---|---|
| SJ-100 | 100 | 20-32 | 45-55 | 100-200 |
| SJ-120 | 120 | 20-32 | 55-75 | 100-200 |
| SJ-150 | 150 | 20-32 | 75-90 | 200-300 |
| SJ-180 | 180 | 20-32 | 90-132 | 200-400 |
| SJ-200 | 200 | 20-32 | 160-280 | 600-800 |
Preguntas frecuentes
What is Heat Wave Stabilization?
It is Rumtoo's temperature-control concept for maintaining more uniform heat distribution across the barrel to improve melt consistency and reduce material degradation.
¿Qué opciones de granulación existen?
You can choose between melt pelletizing with a water-ring cutter and strand pelletizing with a water tank, depending on your material and process target.
¿Se puede automatizar el proceso de peletización?
Yes. The line can be configured with dewatering and conveying equipment to move finished pellets to a product silo and support more automated operation.
¿De qué materiales están hechos el tornillo y el cañón?
The barrel and screw shaft are made from high-strength steel with gas nitriding treatment for improved wear resistance and corrosion resistance.
¿Cuál es la garantía de estas máquinas?
Rumtoo recycling machines include a one-year limited warranty together with ongoing technical support and customization service.
Actualice su línea de peletización hoy
Contact us for the latest prices and lead times. Our team will provide a tailored quote based on your material and production needs.
