Precision Shredding for Textile & Fibre Waste

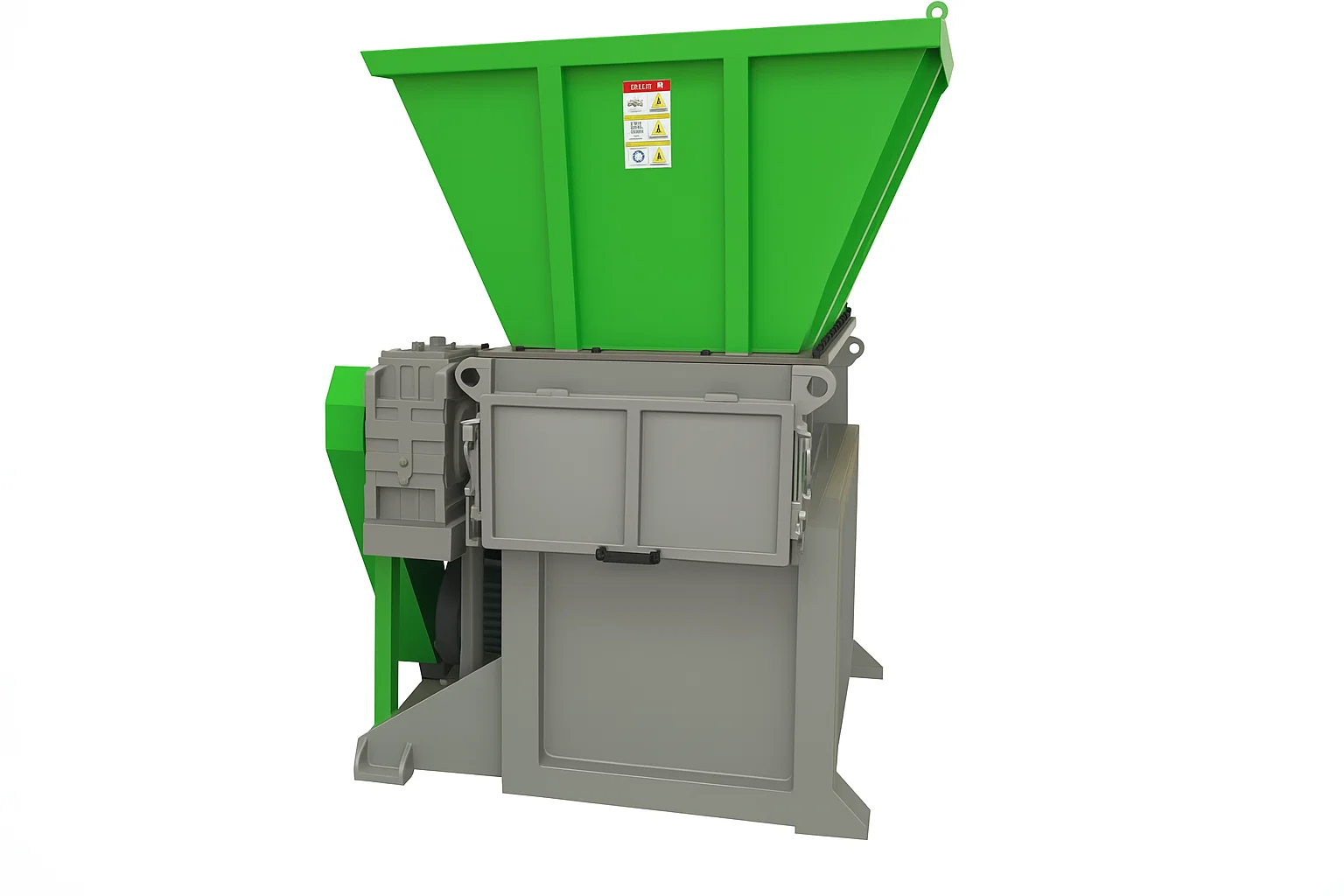

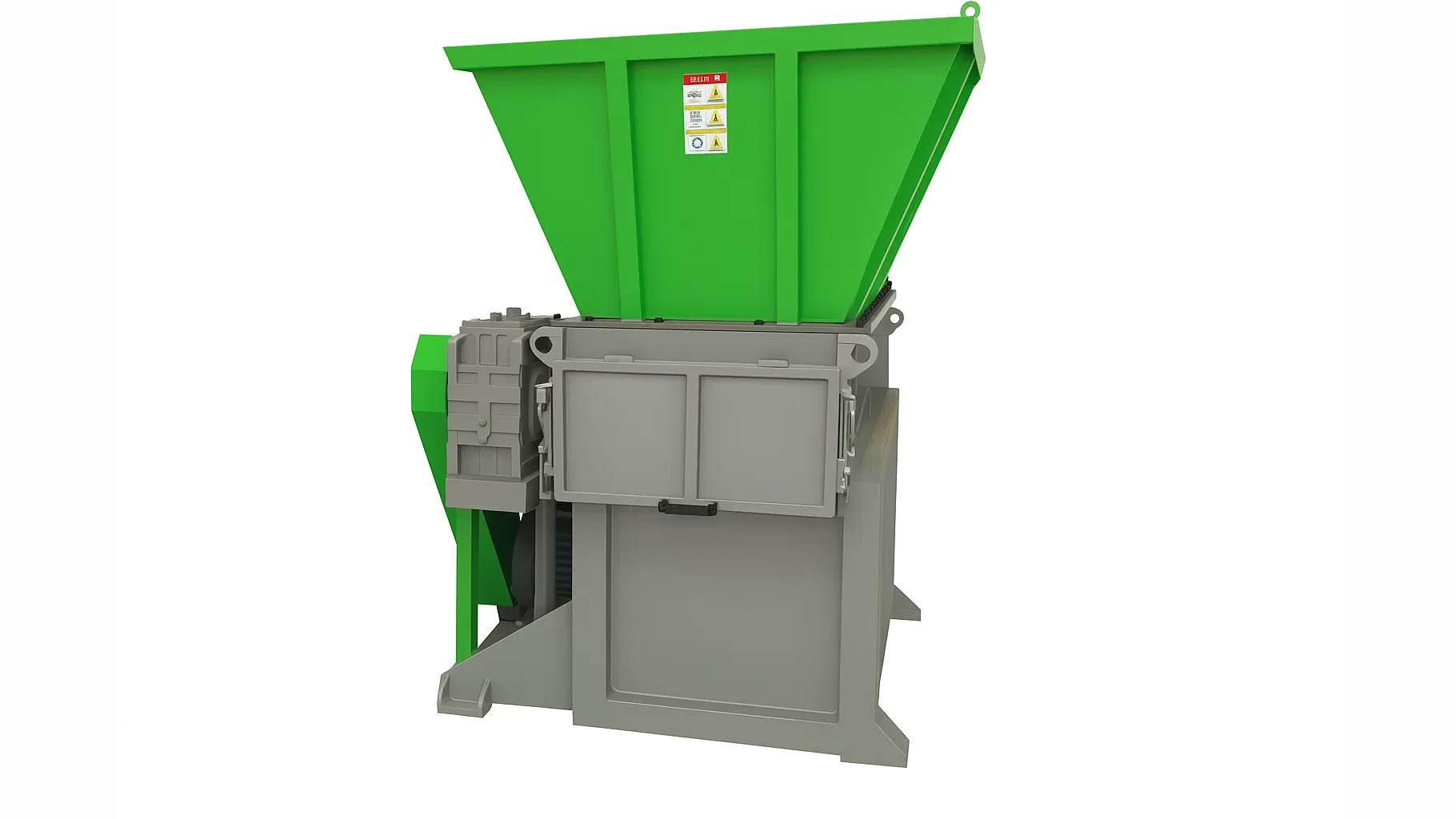

The RTM FibreShred 800 is a powerful single-shaft shredder engineered to transform bulky textile waste into a dense, manageable, and recyclable resource, streamlining your entire waste management process.
Request a Bespoke Quote
Why Invest in the FibreShred 800?
This machine combines robust construction, intelligent controls, and efficient performance to deliver tangible benefits to your operation.
Verbeterde duurzaamheid
A solid, weld-free main shaft and premium D2 steel blades provide superior resilience against wear and heavy loads.
Improved Efficiency
Processes 200–300 kg/h, rapidly turning waste into assets and streamlining your recycling operations.
Advanced Operator Safety
Automated overload protection and jam-reversing functions safeguard both the equipment and the operator.
Energy-Efficient Design
The direct-drive connection and high-torque reducer minimise energy loss, making it cost-effective to operate.
Minimal Downtime
Designed for easy access and maintenance, ensuring blade replacements are quick and interruptions are kept to a minimum.
Increased Waste Density
Significantly reduces the volume of waste materials, making them far easier and cheaper to handle, store, and transport.
Engineered for Unmatched Reliability
From the core shaft to the control system, every component is selected for performance and longevity.
- Solid Main Shaft Construction
CNC-machined from a single block of steel, this weld-free shaft offers maximum durability and structural integrity. - High-Torque Reducer
An H-series reducer operates at a lower speed but with higher torque, improving cutting power and stability. - Heat-Treated D2 Steel Blades
High-strength alloy steel blades are exceptionally effective at cutting through tough textiles, plastics, and light metals. - Direct Drive with Dampening
Directly connected to minimise power loss, with built-in shock absorbers to protect the machine from buffer forces. - PLC Smart Control System
Features automatic overload protection and forward/reverse functions to prevent jams and ensure continuous operation. - Efficient Hydraulic Feeding
A hydraulic-powered ram ensures a smooth, steady, and consistent feed pressure for precise and efficient shredding.
Technical Specifications: RTM FibreShred 800
Detailed data for our mid-scale single-shaft shredder, ensuring consistent and reliable performance.
| Model | RTM FibreShred 800 |
| Production Output | 200 – 300 kg/h |
| Shredding Chamber (L×W) | 800 mm × 950 mm |
| Effective Rolling Knife Length | 800mm |
| Hoofdmotorvermogen | 45 kW |
| Reducer Output Speed | 96 RPM |
| Hydraulic System Power | 3 kW (Max Pressure: 21 MPa) |
| Koelmethode | Air Cooling |
| Blade & Shaft System | |
|---|---|
| Blade Type | 56 Rotating / 2 Fixed |
| Blade Size (L×W) | 40 mm × 40 mm |
| Blade Material | D2 Alloy Steel (Heat Treated) |
| Main Shaft | Solid, CNC-machined 45-grade steel |
| Control & Electrical System | |
|---|---|
| PLC System | Delta |
| Contactors & Protectors | Siemens |
| Control Buttons | Schneider |
| Connection Type | Direct Coupling |
Veelzijdige toepassingen
While optimised for textiles, the FibreShred 800 is a highly capable machine for a range of materials:
- Textile Industry Waste (fabrics, offcuts)
- Plastic Recycling (films, bottles, items)
- Beheer van industrieel afval
- Papier- en kartonproducten
- E-waste & gegevensvernietiging
- Lichte metalen & aluminiumprofielen
Zie de FibreShred 800 in actie
Bekijk hoe onze krachtige enkelassige versnipperaar moeiteloos omvangrijk textielafval verwerkt.
Vraag informatie aan over de RTM FibreShred 800
Neem vandaag nog contact op met ons expertenteam voor gedetailleerde prijzen, levertijden of om een demonstratie van deze krachtige versnipperaar aan te vragen.
