Szrednik Wałka Jednonożnego do Recyklingu Twardych Plastików
A high-performance rigid plastic shredder designed for ABS, PVC pipes, PC lumps, pallets, drums, purgings, and other bulky rigid scrap that need stable primary size reduction.
- Hydraulic ram supports consistent feeding of large rigid parts and purgings.
- Low-speed high-torque rotor helps reduce jamming and improve cutting stability.
- Interchangeable screens support controlled output for downstream granulation.
Jak to działa
Krok 1: Inteligentne karmienie
The hydraulic ram pushes rigid plastic scrap toward the rotor for more stable, hands-free processing.
Krok 2: Wydajne niszczenie
A high-torque low-speed rotor applies shear force to bulky rigid material while helping reduce the chance of a jam.
Krok 3: Spójny wynik
Material passes through the screen for more uniform output before downstream granulation or washing.
Kluczowe korzyści
Wysoka przepustowość
An optimized rotor and stable feeding system support efficient processing of bulky rigid plastic waste.
Zbudowane, by przetrwać
Heat-treated alloy blades and a heavy-duty machine frame help extend service life in demanding use.
Inteligentny system zapobiegający zakleszczeniom
PLC-based load logic and reverse function help protect the machine and reduce interruptions.
Przekształcanie wyzwań w szanse
Problemy
Bulky rigid items often require manual pre-cutting, create downtime through jams, and lead to high blade wear and unstable output.
Nasze rozwiązanie
A wide hopper, hydraulic ram, durable rotor knives, and smart control logic help streamline shredding and support a safer, more stable workflow.

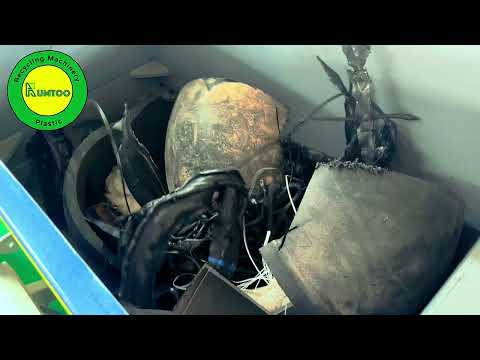

Zobacz to w akcji
Szeroki zakres zastosowań
PE/PVC Pipes & Sheets
Rigid profile waste and long-form plastic scrap.
Extruder Purgings
Dense lumps and purge waste from extrusion and molding lines.
ABS / PC Housings
Rigid electronic and appliance housing scrap.
Pallets & Crates
Bulky HDPE and PP transport packaging waste.
Zderzaki samochodowe
Large molded rigid parts for primary reduction.
HDPE Drums & Containers
Hollow rigid containers prepared for downstream washing and grinding.
Specyfikacja techniczna
| Model | Średnica wirnika | Noże rotorowe | Noże statora | Maksymalna pojemność | Główna moc silnika | Wymiary |
|---|---|---|---|---|---|---|
| RTM-2455 | 275 mm | 24 | 1 | ~400 kg/h | 22 kW | 3250 x 1500 x 2350 mm |
| RTM-3063 | 275 mm | 30 | 1 | ~500 kg/h | 30 kW | 3250 x 1750 x 2350 mm |
| RTM-3980 | 275 mm | 39 | 1 | ~700 kg/h | 37 kW | 4150 x 1900 x 2450 mm |
| RTM-48100 | 315 mm | 48 | 1 | ~900 kg/h | 45 kW | 4700 x 2550 x 2650 mm |
| RTM-57120 | 315 mm | 57 | 1 | ~1200 kg/h | 55 kW | 5350 x 2850 x 2760 mm |
| RTM-75160 | 350 mm | 75 | 2 | ~1300 kg/h | 75 kW | 5900 x 3050 x 2960 mm |
Why We’re Different
| Funkcja | Traditional Methods | Nasza niszczarka do sztywnego plastiku |
|---|---|---|
| Obsługa materiałów masowych | Often requires pre-cutting and manual handling | Hydraulic ram supports direct processing of bulky scrap |
| Poziom automatyzacji | More manual intervention | PLC control and reverse logic improve stability |
| Stabilność operacyjna | More stoppages and inconsistent feeding | More stable continuous shredding workflow |
| Żywotność ostrza | Standard wear performance | Alloy blades support longer service life |
| Bezpieczeństwo | Higher manual handling risk | Enclosed design and smarter protection logic |
Często Zadawane Pytania
Jakie konkretne rodzaje sztywnych plastików może przetwarzać ten shredder?
It can process common rigid plastics such as PVC pipes and sheets, ABS housings, PC sheets, HDPE drums, plastic pallets, automotive bumpers, and extruder purgings.
Jak wybrać odpowiedni rozmiar siatki dla mojego materiału?
The screen size determines the final particle size. Smaller hole sizes are suited to finer output, while larger hole sizes support higher throughput. We recommend matching the screen to your downstream process.
Czy zapewniacie instalację i szkolenie?
Yes. We provide equipment delivery, installation guidance, commissioning support, and operator training according to project scope.
Czy możecie przetestować moje materiały przed zakupem?
Yes. We can run a material trial to validate throughput, output size, and machine suitability before final configuration confirmation.
Gwarancja i instalacja
1 rok ograniczonej gwarancji
Each machine includes standard warranty coverage for supported components and manufacturing defects.
Wsparcie instalacyjne ekspertów
We provide startup assistance, commissioning support, and operator training to help you deploy the line correctly.
Chcesz zwiększyć efektywność recyklingu?
Contact us with your material type, target throughput, and output requirement. Our engineering team will recommend the right single-shaft shredder model for your project.
