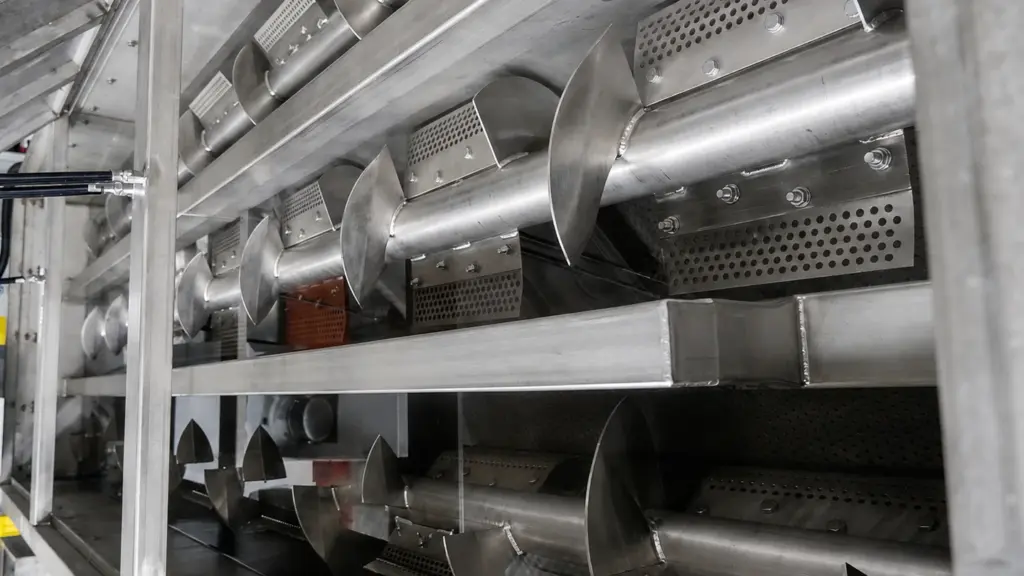

Triple-Row Sink Float Separation Tank
再設計された沈下浮上システムは、従来の浮上式タンク3基分の効果的な分離距離を1つの堅牢なユニットで実現し、リサイクル工場が高濃度汚染物質からよりクリーンなプラスチックを回収するのに役立ちます。.
- Three-row travel path triples soaking time and contaminant removal within a compact workshop footprint.
- Top screws continuously advance floating polyolefins for uniform sorting and washing consistency.
- Engineered for post-consumer agricultural film, woven sacks, and heavy-contamination recycling lines.
How Triple-Row Sink-Float Separation Works
3列構造により、材料の通過経路が延長されるため、プラスチックは排出される前に、より多くの時間をかけて浸漬、分離、および汚染物質の除去が行われる。.
Controlled Infeed & Wetting
Shredded polymers enter the first channel and are immediately immersed under water by motorized paddle drums, thoroughly wetting all flake surfaces.
Screening and Sand Deposition
As flakes advance, heavy sand, glass, and gravel fall through bottom mesh screens into collection troughs, preventing downstream equipment wear.
Extended 3-Row Hydrodynamic Travel
Material loops through three consecutive serpentine channels, providing up to 21 meters of continuous soaking to dislodge sticky residues and labels.
High-Purity Dual-Fraction Discharge
Clean floating PP/PE is discharged at the top by exit paddles, while sinking PET, PVC, and heavy polymers are evacuated by the bottom auger.
3列設計の利点
Triple the separation path without tripling equipment footprint, water inventory, or energy consumption.
-
分離効率の向上
3列に分かれた長い移動距離により、材料が十分に浸漬され、分離される時間が長くなります。.
-
優れた汚染物質除去
高度に汚染されたプラスチックは、洗浄時間を長くすることで、最終的な清浄度と分離品質が向上する。.
-
50% Space Savings
The triple-row configuration provides the effect of three traditional tanks while keeping the equipment layout compact.
-
Lower Power & Water OPEX
Eliminating connecting conveyors and separate pump loops lowers electricity demand and cuts water vaporization loss.
Engineering Details & Equipment Construction
拡張された複数行分離パス
This design allows dirty plastic to travel through three separate rows inside one machine body, giving the material additional retention time for separation and washing without tripling the equipment footprint. Baffles and guided weirs eliminate dead zones and bypass currents.
連続前方搬送
Three heavy-duty top screws keep the floating plastic stream moving continuously through each channel, while the lower perforated screening bed allows settled sand and dense plastics to precipitate cleanly without re-entraining into the clean stream.
技術仕様
Standard parameters for Rumtoo industrial triple-row sink-float separation tanks.
| Model Parameter | TRST-6000 (Standard) | TRST-8000 (High-Capacity) |
|---|---|---|
| Effective Travel Length | 18 meters (3 x 6 m) | 24 meters (3 x 8 m) |
| スループット容量 | 800 – 1,500 kg/h | 1,500 – 3,000 kg/h |
| Tank Body Dimensions (L x W x H) | 6,200 x 2,200 x 1,850 mm | 8,200 x 2,600 x 2,050 mm |
| Wetted Material Contact | Stainless Steel SUS304 (3.0–4.0 mm) | Stainless Steel SUS304 (4.0–5.0 mm) |
| Top Screw Conveyor Drive | 3 x 2.2 kW geared motors | 3 x 3.0 kW geared motors |
| Bottom Heavy Discharge Auger | 4.0 kW heavy-duty screw drive | 5.5 kW heavy-duty screw drive |
| Water Holding Capacity | Approx. 14,000 Liters | Approx. 22,000 Liters |
| Sediment Discharge | Pneumatic purge valves + Bottom auger | Pneumatic purge valves + Bottom auger |
Swipe horizontally to view the full table.
TRST-6000 (Standard)
TRST-8000 (High-Capacity)
Complete Washing Line Integration
Integrate the triple-row separation tank into a complete automated washing line.
Standard Sink-Float Separation Tank
Explore our standard single-row float-sink separation tanks for clean post-industrial scrap and standard flake throughputs.
Sink-Float Tank Sizing Guide
Technical calculations on water retention time, polymer settling velocities, and tank dimensions needed for your capacity.
PP/PEフィルム洗浄ライン
Turnkey washing, friction scrubbing, squeezing, and drying lines engineered for agricultural film and woven bags.
Washing Systems Overview Hub
Browse our comprehensive lineup of plastic recycling washing equipment, hot washers, and friction dryers.
よくある質問
Request a Technical Quote & Layout Drawing
Provide your input material specifications, contamination levels, and required hourly throughput. Our engineering team will configure the optimal triple-row tank system.
