Water Ring Pelletizer: The Cure for Strand Breakage
Stop dealing with messy strands and downtime.
For PP/PE film recyclers, "strand breakage" is the #1 headache caused by moisture or MFI fluctuations. Our Water Ring Die-Face Cutter solves this permanently. It cuts molten plastic directly at the die head—ensuring continuous, automated production of uniform, round pellets without the need for manual restringing.
Why Upgrade to Water Ring Technology?
- Zero Strand Breakage
Unlike strand pelletizers, our die-face system has no strands to break. It handles fluctuating MFI and moisture without stopping, ensuring 100% uptime.
- Premium Pellet Aesthetics

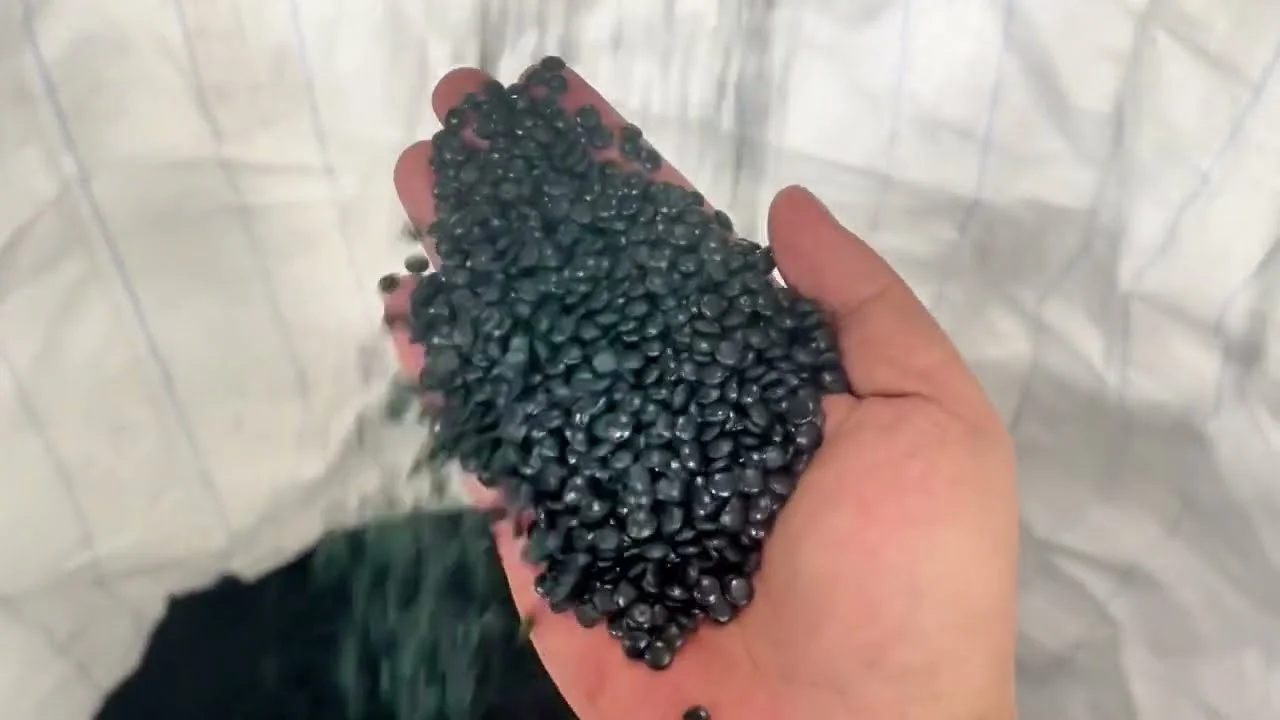

Produces round, uniform "lentil-shaped" pellets that look professional and flow better in hoppers, commanding a higher market price.
- 완전 자동화된 작업
Say goodbye to operators standing by the water bath. One-button start means the machine runs itself, significantly reducing labor costs.
- Higher Moisture Tolerance
Steam pockets that snap strands are no issue here. The water ring system effectively cools and conveys pellets even with imperfectly dried input materials.
- Compact & Efficient
By eliminating the long water bath cooling tank, the water ring system saves valuable factory floor space.
- Consistent Throughput
The integrated cutter compactor ensures feeding stability, but the real star is the cutter that keeps up with high-speed production without interruption.
작동 원리: 5단계 과정
- 1. 먹이주기
Material is fed via a belt conveyor into the compactor. The feeding speed is automatically adjusted, and an optional metal detector can be integrated for protection.
- 2. 자르기 및 압축
Rotary blades cut and heat the material through friction, shrinking and densifying it before it's fed directly and stably into the extruder screw.
- 3. 플라스틱화 및 배기
A specialized single-screw extruder gently melts the material. A double-zone vacuum system then efficiently removes inks, moisture, and other volatiles.
- 4. Water Ring Pelletizing
The core advantage: Molten plastic is cut immediately upon exiting the die head and flung into a cooling water ring. No strands, no breakage, just perfect pellets.
일반적인 적용 사례
- Flexible Packaging
Perfect for LDPE/LLDPE industrial films, shopping bags, and shrink wraps.
- PP 짠 가방
Handles raffia, cement bags, and bulk bags (FIBC) with high strength and consistency.
- Multi-Layer Films
Efficiently processes complex films including printed or laminated BOPP materials.
- Post-Consumer Waste
Robust enough to handle washed agricultural films and post-consumer plastic scraps.
기술 사양
| 모델 | 슬리브 지름 (mm) | L/D 비율 | 주요 모터 (KW) | 처리량 (kg/h) |
|---|---|---|---|---|
| RM80 | 80 | 36:1 | 45/55 | 160-220 |
| RM100 | 100 | 36:1 | 90/110 | 300-380 |
| RM120 | 120 | 36:1 | 132 | 450-480 |
| RM140 | 140 | 36:1 | 160/185 | 500-650 |
| RM160 | 160 | 34:1 | 220/250 | 800-1000 |
| RM180 | 180 | 34:1 | 315 | 1000-1200 |
실제로 확인해 보세요
@chat_machine PP PE plastic pelletizing machine #플라스틱펠릿기계 #펠릿화기계 1TP5재활용기계 ♬ original sound - Rumtoo Recycling Machinery
보증 및 설치
- 1년 제한 보증
All our recycling machinery comes with a limited warranty, ensuring peace of mind with your purchase.
- 전문가 설치 지원
We offer installation packages where our engineers can travel to your facility to guide you through the setup process. All our products can be customized to customer requirements.
지금 문의하세요
Ready to eliminate strand breakage and upgrade to professional-grade pellets? Contact us for a quote on our Water Ring system.
