Heavy Duty Plastic Crusher for Industrial Recycling
This crushing solution is designed for stable size reduction of rigid or bulky plastic feedstock before washing, conveying, or downstream processing.
- Configured according to material size, wall thickness, and target output.
- Suitable for integration in shredding, washing, or regrind preparation lines.
- Designed for stable industrial duty and practical maintenance access.
Equipment Overview
Industrial Crushing Performance
This crusher is intended for rigid plastic parts, profiles, trays, sheets, purgings, and other bulky scrap that need controlled size reduction before downstream handling.
Key Features
Rotor and knife configuration support more consistent crushing of rigid and bulky feedstock.
-
Stable Size Reduction
Rotor and knife configuration support more consistent crushing of rigid and bulky feedstock.
-
Heavy-Duty Construction
Machine structure and cutting chamber are designed for demanding industrial recycling use.
-
Flexible Output Control
Screen configuration can be matched to the downstream granulation or washing requirement.
-
Maintenance-Friendly Design
Accessible service areas help simplify inspection, knife replacement, and routine maintenance.
Typical Applications
-
Rigid Plastic Waste
Pipes, sheets, crates, housings, pallets, and molded parts.
-
Pre-Washing Preparation
Prepared for washing, conveying, storage, or downstream separation.
-
Bulky Production Scrap
Suitable for purgings, edge trim, and oversized rejected parts.
-
Custom Recycling Lines
Configured according to feed size, throughput, and plant layout.
Technical Specifications
| Model | Motor Power | Capacity (kg/h) | Knives (Rotor/Stat.) | Dimensions (mm) |
|---|---|---|---|---|
| RTMG-100 | 7.5 kW | 100 – 150 | 9 / 2 | 1200×800×1600 |
| RTMG-200 | 15 kW | 200 – 300 | 12 / 2 | 1500×950×1750 |
| RTMG-300 | 22 kW | 300 – 450 | 15 / 3 | 1800×1100×1900 |
| RTMG-500 | 37 kW | 500 – 700 | 18 / 3 | 2200×1300×2100 |
RTMG-100
RTMG-200
RTMG-300
RTMG-500

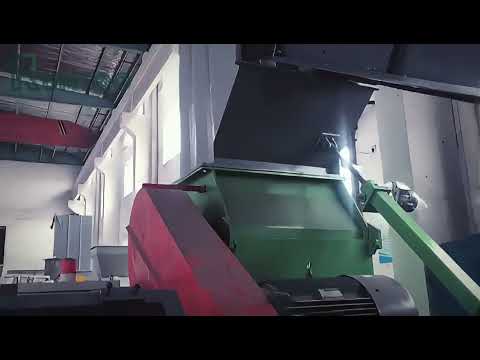

See It in Action
Frequently Asked Questions
Blade sharpness depends on the material type and cleanliness. For clean rigid plastics, blades typically last 200-500 working hours before sharpening. Our D2 steel knives are designed for durability and multiple re-sharpenings.
While our machines are robust, metal can damage the blades. We strongly recommend installing a magnetic separator on the feeding conveyor. If a blockage occurs, the safety overload system will automatically shut down the motor to prevent catastrophic damage.
Yes, but the blade configuration may need adjustment. For soft materials like PP woven bags or films, we recommend a ‘Film’ specific rotor design to prevent wrapping. Please specify your material when inquiring.
The screen size determines your final flake size. For general washing and pelletizing lines, a 10-12mm screen is standard. For volume reduction only, larger screens (20mm+) increase throughput.
Absolutely. Beyond the warranty period, we offer lifetime technical support via video call or email to assist with troubleshooting, maintenance advice, and part ordering.
Warranty & Installation
-
Warranty Coverage
Standard warranty coverage is available for supported machine components and manufacturing defects.
-
Installation & Support
Hinged screen cradle and quick-access service points allow blade inspection and replacement to be performed without major disassembly.
Request a Customized Solution
Share your plastic type, feed dimensions, target throughput, and output requirement. We will recommend a suitable crusher configuration. All specifications shown are typical reference ranges. Final configuration is customized based on your feed material, line layout, and production requirements.
