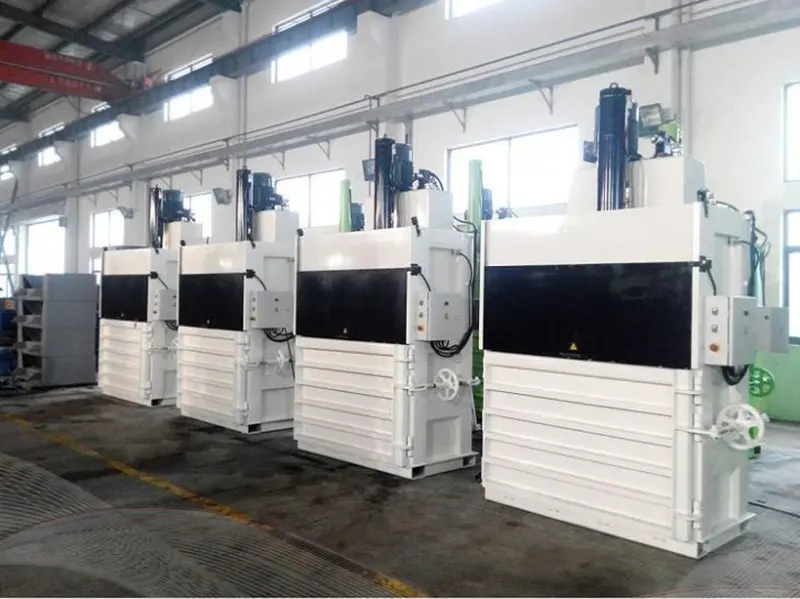

Vertical Paper & Cardboard Balers 30–60 Ton Hydraulic Presses
Our vertical paper and cardboard balers compress OCC, cartons and dry paper waste into manageable bales for storage and transport. The 30–60 ton LE series combines manual batch loading and tying with hydraulic compression, making it suitable for warehouses, retail stores, workshops and recycling collection sites.
- Reduces material volume and freight costs through compact compression.
- Manual loading and tying with hydraulic compression; control options depend on configuration.
- Compression chamber and bale size can be customized for different requirements.
Vertical Paper & Cardboard Baler Overview
Versatile hydraulic batch-baling equipment designed to optimize waste storage and reduce transport expenses.
Primary Use
Condenses loose recyclable materials for easier handling, cleaner on-site storage, and reduced transportation costs.
Materials Handled
Designed for OCC, corrugated cardboard, cartons, and dry paper. Configuration for plastic film or other materials available on request.
Reliable Operation
Manual batch loading and bale tying paired with powerful hydraulic compression and intuitive operator controls.
Tailored Customization
Compression chamber geometry and finished bale dimensions can be tailored precisely to customer logistics requirements.
Vertical Baler Features for Paper & Cardboard
Built with industrial-grade hydraulic components, dual-safety interlocks, and user-friendly bale handling.
-
Automatic Bale Ejector
Features a heavy-duty chain ejection system that tilts finished bales forward onto pallets quickly and safely.
-
Feed Opening Door Control
An upward-lifting feed door automatically clears the opening when the platen retracts, speeding up manual batch loading.
-
Enhanced Safety Design
The hydraulic ram immediately halts downward motion if the gate opens, backed by an independent emergency cutoff.
-
Anti-Rebound Gate Structure
Features Euro and U.S. standard anti-rebound claws inside the chamber to keep compressed cardboard from springing back.
-
Stable Ram Guidance
Cross-supported ram guide rails prevent platen tilting caused by uneven material distribution inside the baling chamber.
-
Premium Sealing and Piping
Equipped with Japanese NOK hydraulic seals and A.M.C oil pipe fittings to eliminate leaks and maintain stable system pressure.
-
Compact Valve Layout
Superimposed hydraulic valve blocks optimize floor space requirements while facilitating straightforward maintenance access.
-
Direct Motor-Pump Connection
Precision-machined flange coupling guarantees 100% concentricity between motor and hydraulic pump, maximizing pump service life.
How a Vertical Hydraulic Baler Works
Three straightforward operating steps to compress loose scrap into dense, stackable bales.
1. Load Material
Load loose paper, cartons, or cardboard boxes through the feed opening, adhering to chamber fill indicators.
2. Hydraulic Compression
The hydraulic platen compacts material downward. Repeat loading and compaction cycles until full bale height is achieved.
3. Tie & Eject Bale
Thread strapping wire or tape through the guided platen slots, secure the knot, and activate the chain ejector to discharge.
Paper & Cardboard Baler Applications
Ideal for businesses seeking practical volume reduction with low initial capital investment.
-
Waste Paper Facilities
Used in waste paper recycling depots and collection stations to compress scrap into uniform blocks for transport.
-
Small Disposal Centers & Retail
Suitable for supermarkets, distribution warehouses, and packaging facilities requiring compact footprint and easy setup.
-
Paper Mills & Recyclers
Applicable to manufacturing plants and corrugated converters requiring an economical batch-baling solution.
Design & Operational Features
The vertical hydraulic layout combines a guided platen, feed-door interlock and chain bale ejection. Confirm the feed opening, bale handling clearance and control options when selecting a model.
Compact and Practical Baling Layout
The vertical baler provides a practical batch-baling layout for paper and packaging waste. Choose the press force and bale dimensions around your available space, handling equipment and downstream buyer requirements.
Rugged Guide Rails & Operator Interlocks
Rigid lateral guides keep the compression platen level even when baling irregular, non-uniform cardboard cartons, preventing piston rod deflection and cylinder seal wear.
Vertical Paper & Cardboard Baler Specifications
Bale weights vary with material moisture and density. Confirm the RTM-600LE180100 feed opening and final installation dimensions in your quotation.
| Model | RTM-300LE11070 | RTM-400LE12080 | RTM-500LE15076 | RTM-600LE180100 |
|---|---|---|---|---|
| Pressure Force | 30 tons | 40 tons | 50 tons | 60 tons |
| Feed Opening Size (L*H) | 1100*500 mm | 1200*500 mm | 1500*500 mm | Confirm with quotation |
| Baling Chamber Height | 1400 mm | 1500 mm | 1500 mm | 1600 mm |
| Bale Size (L*W*H, H adjustable) | 1100*700*(500-900) mm | 1200*800*(600-1000) mm | 1500*760*(600-1000) mm | 1800*1000*(350-1050) mm |
| Bale Weight | 150–250 kg | 200–400 kg | 300–500 kg | 250–700 kg |
| Motor Power | 5.5 kW | 7.5 kW | 7.5 kW | 11 kW |
| Machine Weight | 1,900 kg | 2,200 kg | 2,800 kg | 3,500 kg |
| Overall Dimensions | 1500*1050*2900 mm | 1600*1150*3000 mm | 2000*1150*3100 mm | 2260*1350*3520 mm |
Frequently Asked Questions
Answers to key questions regarding material compatibility, power requirements, and baler sizing.
The LE series is intended for OCC (old corrugated containers), cardboard boxes, cartons and dry paper. Plastic film or other materials require confirmation of the appropriate chamber and tying configuration.
No. Compression is hydraulic. Operators load material in batches and tie the finished bale; the available hydraulic control options depend on the model and configuration.
The specification table lists the dimensions and indicative weights for the 30, 40, 50 and 60 ton models. Actual bale weight depends on material type, bulk density and loading conditions.
Consider a horizontal baler when feeding volume, operating hours or line integration exceed a practical batch-loading workflow. Semi-automatic horizontal balers require manual tying; fully automatic models use automatic tying.
Send your material type, daily volume, target bale dimensions, available floor space and power supply. Confirm feed-opening dimensions and bale handling requirements before ordering.
Warranty & Global Installation Support
-
Warranty Coverage
Standard warranty coverage is available for supported machine components and manufacturing defects.
-
Installation & Support
We provide installation guidance, commissioning support, operator training, and spare parts service according to project scope.
