Crusher For PVC Pipe And Profiles
Heavy-duty horizontal size reduction engineered for continuous feeding of 4m–6m PVC pipes, conduits, and extruded profiles without manual pre-cutting.
- Direct horizontal trough infeed eliminates manual sawing labor and blade safety hazards.
- D2/DC53 wear-resistant rotor knives engineered for high-CaCO3 abrasive rigid PVC formulations.
- Progressive V-cut scissor shear lowers energy consumption and maintains regrind fines below 2.5%.
Direct Horizontal Infeed for Full-Length Pipes & Profiles
High-Throughput Scrap Reclamation Without Pre-Sawing
Processing long, rigid pipes and profiles in conventional vertical-drop granulators requires dangerous, labor-intensive manual pre-cutting with saws on the plant floor. Rumtoo’s SWP Horizontal Crusher solves this bottleneck with an extended horizontal feed trough that accepts 4-meter to 6-meter PVC, HDPE, and PPR pipes and extruded profiles directly.
As the pipe enters the trough, the staggered V-type rotor blades draw the material inward with continuous traction, applying progressive scissor shears against heavy-duty counter knives. This continuous horizontal intake dampens motor amp spikes, prevents pipe kick-back, and delivers high-bulk-density regrind ready for direct vacuum conveying or twin-screw re-extrusion.
Key Features of Our Horizontal Pipe Crusher
Engineered specifically for rigid pipe extrusion scrap, high-filler abrasive compounds, and continuous plant operation.
-
Direct Horizontal Infeed (No Pre-Cutting)
Feed standard 4m–6m drainage, conduit, and profile scrap directly into the horizontal trough. Eliminates manual sawing, slashing operator labor costs and eliminating plant dust hazards.
-
High-CaCO3 Abrasive Wear Metallurgy
Rigid PVC formulations contain heavy mineral fillers. Rotor blades are forged from D2 (1.2379) / DC53 tool steel vacuum heat-treated to HRC 58–60 with optional wear-resistant chamber liners.
-
Progressive Scissor Shear (Low Dust & Fines)
Staggered rotor blades engage stationary bed knives at an acute angle. This progressive scissor bite eliminates pipe shattering, suppresses amp surges, and keeps regrind fines below 2.5%.
-
Dual-Chute Flexibility & Rapid Servicing
Equipped with a horizontal trough for pipes and an auxiliary top hopper for purgings and fittings. The split-cradle screen and hydraulic chamber opening allow complete blade servicing in under 45 minutes.
PVC Pipe & Profile Crusher Applications
-
PVC & PE Drainage / Conduit Pipes
Continuous size reduction of full-length municipal drainage, electrical conduit, corrugated ducting, and agricultural irrigation pipes.
-
uPVC Window & Door Extruded Profiles
Reclaiming production off-cuts, corner weld trimmings, hollow multi-chamber window profiles, and architectural exterior trims.
-
Extrusion Start-Up Purgings & Heads
Heavy startup patties, thick lumps, and extruder purge blocks handled via the auxiliary vertical drop-hopper without stalling the high-inertia rotor.
-
Injection Molded Fittings & Defective Parts
Elbows, tees, couplings, electrical junction boxes, and sprue runners reduced into calibrated, dust-controlled regrind ready for blending.
PVC Pipe & Profile Crusher Specifications
| Model | Main Motor (kW) | Rotary / Fixed Knives | Rotor Dia. × Length (mm) | Feed Opening (mm) | Est. Output (kg/h) |
|---|---|---|---|---|---|
| SWP-560/630 | 22 – 37 | 4 / 2 | 560 × 630 | 630 × 400 | 250 – 350 |
| SWP-730/830 | 55 – 75 | 6 / 2 | 730 × 830 | 830 × 500 | 450 – 700 |
| SWP-1000/1300 | 90 – 110 | 8 / 2 | 1000 × 1300 | 1300 × 600 | 850 – 1200 |
Swipe horizontally to view the full table.

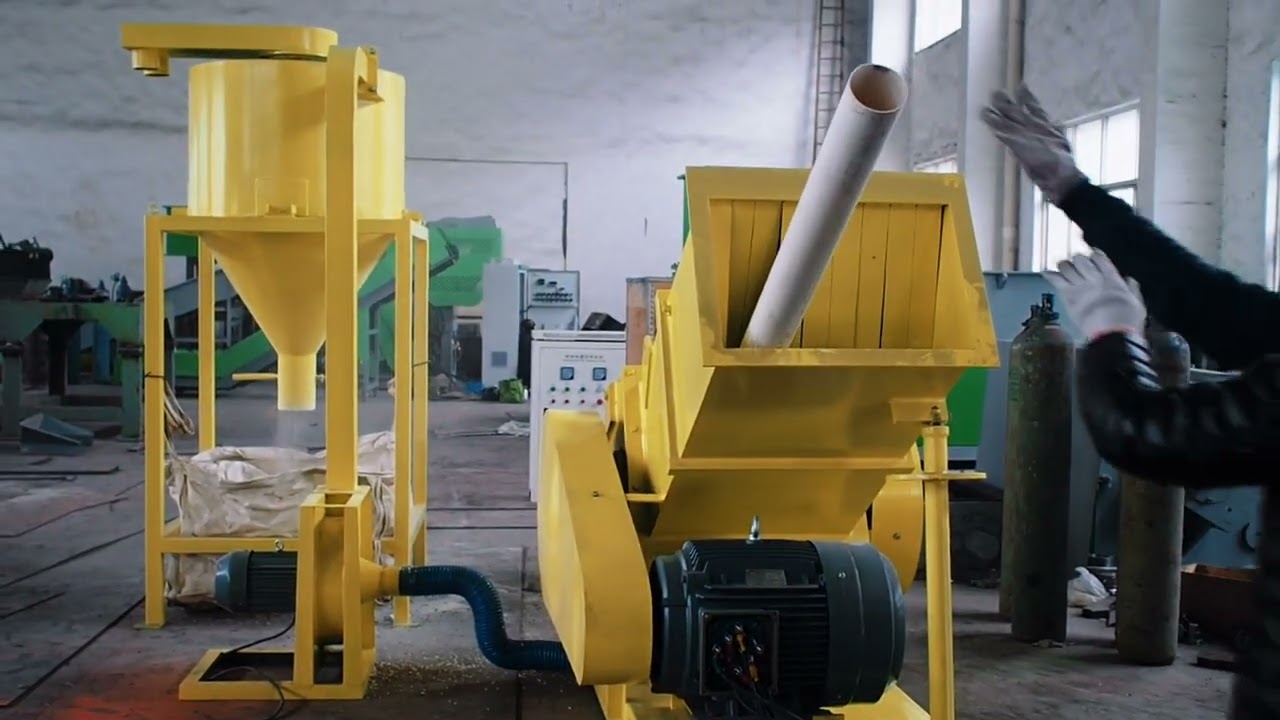

PVC Pipe Crusher in Action: Video
Frequently Asked Questions
Warranty & Global Installation Support
-
12-Month Mechanical Warranty
All main structural components, rotor shafts, and heavy-duty spherical roller pillow blocks are covered by a comprehensive 12-month industrial warranty, backed by available spare wear parts and blade sets.
-
Outboard Bearings & Rapid Maintenance
External pillow block housings isolate heavy-duty spherical bearings from abrasive PVC dust and heat buildup. Hydraulic chamber opening and split-screen cradles enable blade gap calibration and screen swaps in under 45 minutes.
Get a PVC Pipe & Profile Crusher Quote
Share your pipe outer diameter, wall thickness, profile geometry, target throughput (kg/h), and regrind requirements. Our engineering team will recommend a tailored SWP horizontal crushing solution. All specifications shown are typical reference ranges; final machines are customized for your plant footprint and production targets.
