Introduction
In the push toward circular economy and resource conservation, plastic recycling equipment plays a vital role. Among these machines, the plastic shredder machine is foundational. It prepares waste plastics for subsequent processing by reducing size and volume, improving handling and recycling efficiency.
For professionals evaluating recycling lines, understanding how the machine works ensures proper specification, integration and return on investment.
What Is a Plastic Shredder Machine?
A plastic shredder machine is an industrial device designed to reduce large plastic items—such as bottles, containers, film, piping or molded rejects—into smaller fragments. Unlike granulators, which typically process smaller or pre‑cut material at higher speed, shredders are built for primary size reduction of bulky or rigid items.
These fragments then proceed to other stages of the recycling process, such as washing, drying, granulation or pelletizing.
Working Principle of a Plastic Shredder Machine
The functioning of a plastic shredder machine involves a coordinated feed, cutting, screening and discharge process. Here are the key phases:
1. Feeding the Material
Plastic waste is introduced into the shredder via a hopper or automatic feed system. The feed system may include conveyors, pneumatic loaders or manual tipping, depending on the scale. Forced feeding systems are common in large plants to avoid blockages and ensure constant through‑put.
2. Shredding Process (Cutting / Shearing / Tearing)
Once inside the shredding chamber, the material encounters rotating blades or shafts. These may be single‑shaft, double‑shaft, four‑shaft or other designs depending on application. The blades apply shear, tear and compression forces to break down plastics.
For example, in a twin‑shaft shredder the two rotors turn at moderate speed and high torque, pulling the material through and breaking it apart.
The size and shape of the output fragments are influenced by rotor design, blade geometry and speed.
3. Screening & Size Control
After initial shredding, the fragments pass through a screen or mesh below the cutting chamber. The screen opening dictates the maximum size of the output particles. Materials larger than the opening remain in the chamber for further cutting.
This step is crucial to ensure uniform fragment size and optimise downstream processing (washing, drying, granulation).
4. Output Collection
Once fragments pass through the screen, they are discharged from the machine—into a bin, conveyor or directly into the next stage of the recycling line. Uniform fragments enable easier handling, better washing penetration and smoother granulation.
Key Components and Design Considerations
Understanding the critical parts of a plastic shredder machine helps when specifying equipment or evaluating vendors.
- Hopper / Feeding Port: Must be sized for the largest input waste and integrate safely with loading equipment.
- Rotor(s)/Blades: High‑torque shafts fitted with cutting knives; blade design (straight, staggered, interlocking) affects cutting effectiveness and wear.
- Screen / Mesh: Determines fragment size; thicker material and high strength required for rigid plastics.
- Motor & Drive: Typically low speed and high torque for shredders (unlike high‑speed granulators).
- Safety & Structure: Solid frame, guarding, emergency stops, interlocks and maintenance access are essential components.
Why Plastic Shredder Machines Are Critical in Recycling
Using a shredder machine provides key benefits for a recycling facility:
- Volume Reduction & Handling Efficiency: Large waste items become smaller, easier to handle and transport.
- Improved Washing & Drying Performance: Smaller fragments have greater surface area and are easier to clean and dry.
- Better Downstream Compatibility: Fragment size consistency improves feeding into granulators, extruders or pelletizers.
- Waste Stream Flexibility: Many shredder machines can handle bulky or irregular waste—film, drums, bottles, piping—making them versatile.
Integrating with Your Recycling Line: Rumtoo Machine Expertise
At Rumtoo Machine, we offer shredders designed and configured for specific waste streams—whether rigid plastics, film or mixed materials. For a full understanding of how our shredders can integrate into your line, refer to our product page: Plastic Shredders.
By aligning shredder capacity, material characteristics and downstream requirements, you’ll ensure smoother operations and higher yield.
Frequently Asked Questions
How do single-shaft, double-shaft, and four-shaft shredders cut differently?
A single-shaft shredder uses one rotor whose knives shear material against fixed counter-knives, with a screen below setting the output size — a good all-rounder for rigid plastics. A double-shaft shredder runs two counter-rotating rotors that grab, tear, and crush bulky items like drums and bales, usually without a screen, so it resists jamming on tough feed. A four-shaft shredder adds a second pair of rotors that re-cut the material, producing finer and more uniform pieces in a single pass.

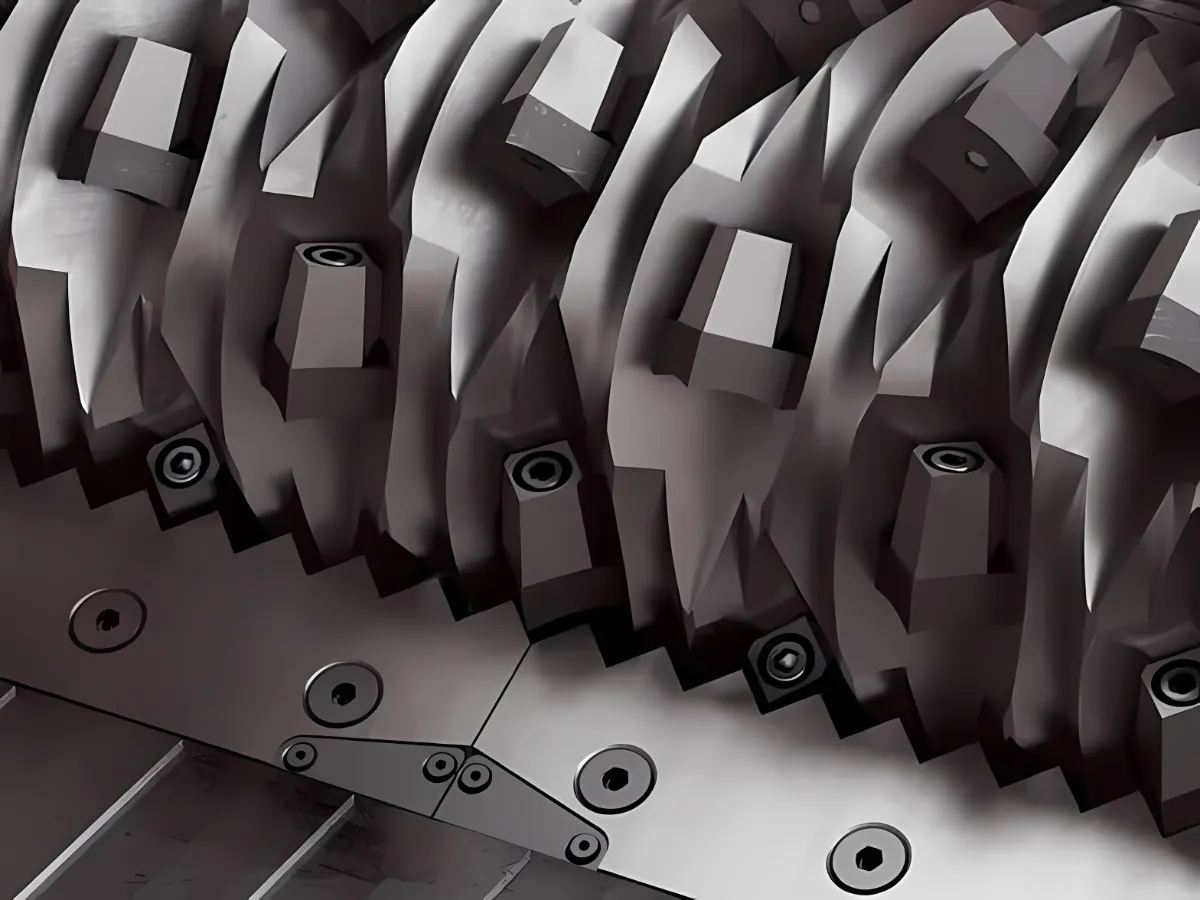

What does the cutter box and blade setup look like inside a shredder?
The cutter box is a heavy steel chamber that holds the rotor (or rotors), the fixed counter-knives, and the screen. Knives are bolted onto the rotor in staggered or interlocking rows so every rotation brings a fresh cutting edge into play, and most are made from hardened tool steel that can be rotated to a fresh edge, re-sharpened, or replaced. The gap between the moving knives and the fixed counter-knives is adjustable — a tighter gap gives a cleaner cut but wears the edges faster.
How does the screen control the final particle size?
The screen sits directly under the rotor, and nothing leaves the cutting chamber until it is small enough to fall through the screen holes. That makes the aperture the single biggest factor in output size — swapping screens changes the whole output spec without touching the rotor or knives. The trade-off is that an undersized screen keeps material recirculating longer, which cuts throughput.
What affects a shredder’s throughput?
The feedstock matters most — bulky hollow items like drums or film shred much slower than dense purge lumps, and wet or contaminated material slows things down further. On the machine side, rotor speed and torque, blade sharpness, screen aperture, and how steadily the hopper is fed all play a role. A machine rated at 1,000 kg/h on rigid HDPE might manage only half that on film or mixed bales, so always check ratings against your actual waste stream.
How fast do shredder blades wear, and how should they be maintained?
On clean plastics a set of hardened blades can run for hundreds of hours; abrasive fillers like glass fiber — or stray metal in the feed — dull them much faster. Rising motor current, louder cutting, or oversized output are the usual warning signs. Most blades have two or four usable edges, so you rotate them first, regrind them next, and replace them only when they are past their grind limit. Keeping the knife gap set right and keeping metal out of the feed are the two cheapest ways to stretch blade life.
How do you deal with noise and dust from a shredder?
Shredders are loud, typically 85–100 dB at the machine, so acoustic enclosures, sound-dampening hopper liners, or placing the machine in a separate room are standard practice. Dust is handled with extraction hoods over the feed and discharge points, ducted to a bag filter or cyclone. Operators working nearby should still wear ear protection and dust masks, and local regulations may require formal noise and air-quality controls.
What is the difference between a shredder and a crusher?
A shredder runs at low speed with high torque and tears material between rotating knives and counter-knives, taking large, tough, or bulky items down to coarse pieces. A crusher runs faster and cuts pre-broken material into smaller, more uniform flake with a multi-knife rotor working against a screen. In short, the shredder does the rough first cut and the crusher does the finer second cut — many recycling lines run both in sequence.
Conclusion
Understanding the working principle of a plastic shredder machine is vital for anyone investing in plastic recycling infrastructure. It determines how well you can process feedstock, how efficiently your line runs and ultimately the quality of your recycled output. When selecting equipment, keep in mind the feed type, required throughput, fragment size, maintenance access and safety.
With the right shredder in place (and proper integration into your recycling line), you’ll be better positioned to meet both operational and sustainability goals.
