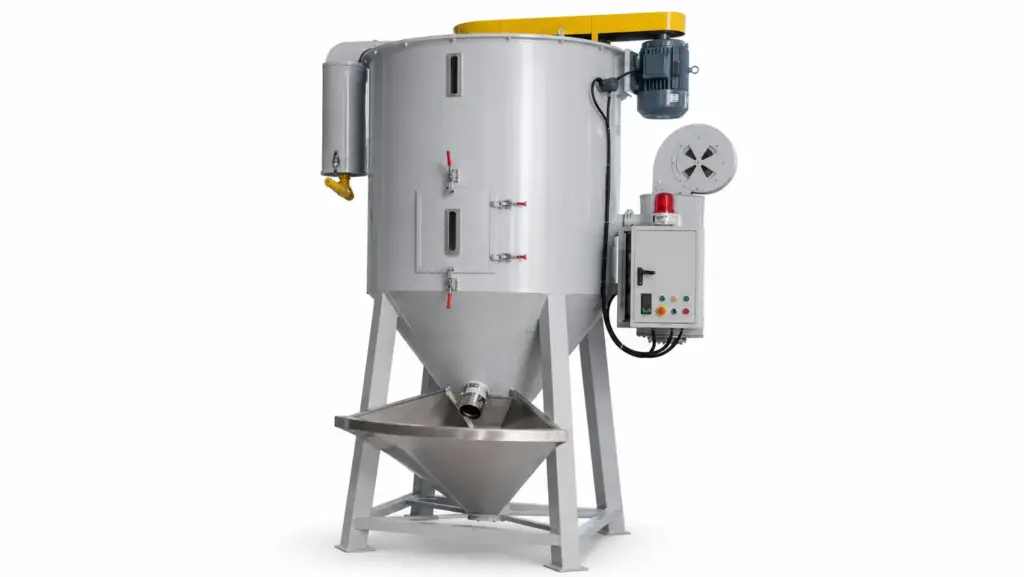

수직의 혼입 플라스틱 과립 제조기
High-efficiency vertical screw mixer designed for rapid, uniform blending of plastic pellets, regrind flakes, powders, and color masterbatch. Unheated blending model engineered for extrusion, injection molding, and granulation lines.
- 펠릿, 플레이크, 분말, 첨가제 및 재분쇄 재료의 균일한 혼합.
- Vertical structure saves valuable workshop floor space and supports simple infeed handling.
- Available in capacities from 500 kg to 5,000 kg with polished SUS304 stainless contact surfaces.
Need thermal drying with hot air while mixing? View our 수직 혼합 및 건조기.
Advantages of Our Vertical Mixing Machine
플라스틱 가공에서 일관된 혼합 품질을 제공하고, 노동 강도를 줄이며, 자재 취급을 간소화하도록 설계되었습니다.
-
빠르고 균일한 혼합
Central vertical screw lifts materials continuously, scattering them in an umbrella cascade for rapid blending within 10–15 minutes.
-
탁월한 균일성
Ensures batch-to-batch color and physical consistency for masterbatch, virgin polymer, and flake blends.
-
SUS304 Stainless Contact Parts
Corrosion-resistant mixing barrel and central auger prevent rust, cross-contamination, and material adhesion.
-
Stable Heavy-Duty Drive
Industrial copper-wound motor and cycloidal gear reducer support reliable, continuous 24/7 production cycles.
-
최소한의 공간 점유
Vertical cylindrical tank occupies minimal floor area compared to horizontal ribbon or paddle blenders.
-
Operator Safety Interlocks
Door safety limit switches, thermal overload protection, and emergency stop pushbuttons protect personnel.

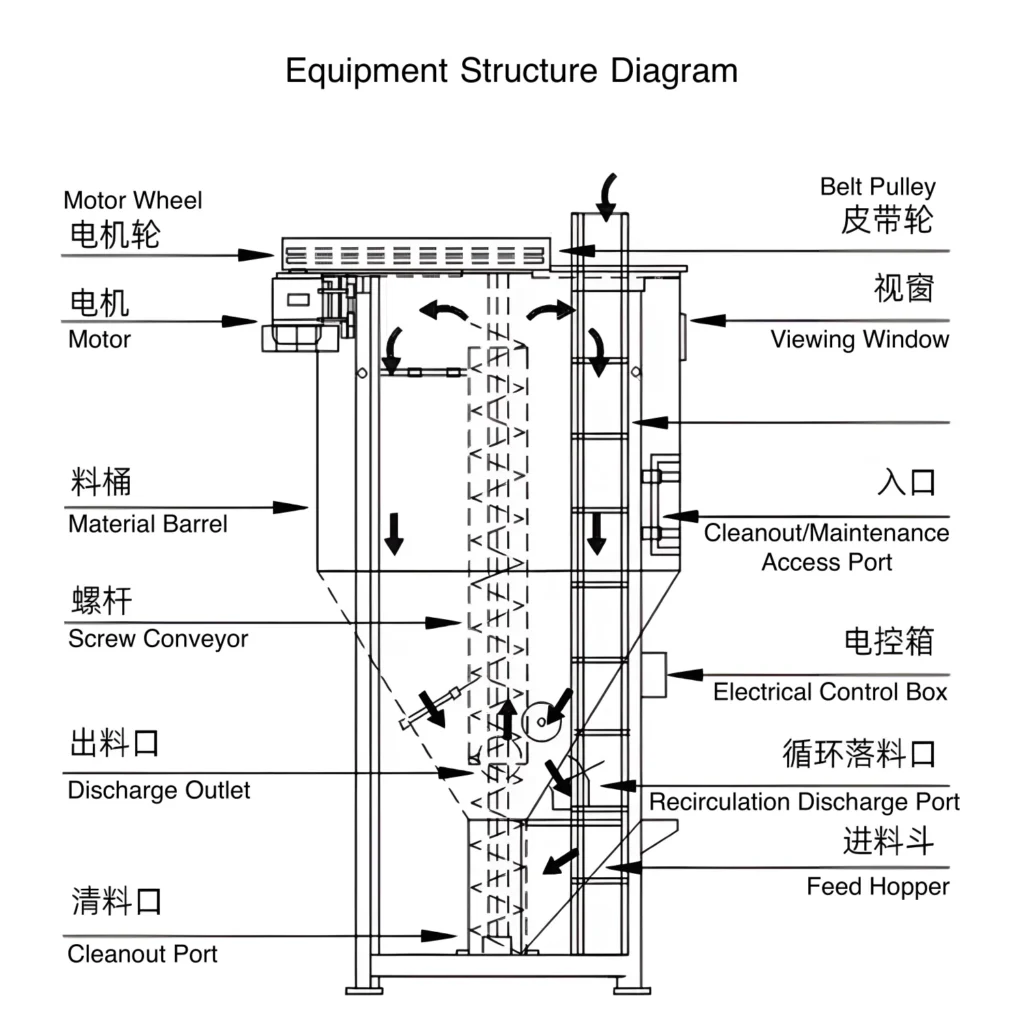

Equipment Overview & Material Path
Main Mixing Chamber and Circulation Dynamics
The vertical mixing chamber combines spiral auger lifting and continuous recirculation to achieve complete homogeneity across pellets, flakes, powders, and additives. Materials fed into the lower hopper enter the central screw auger, which elevates them to the top deflector plate.
Centrifugal action spreads the material outwards in a continuous falling curtain back into the hopper cone, generating millions of intersecting contact points that homogenize additives in minutes.
플라스틱 믹서의 작동 원리 3단계
효율적인 혼합과 후속 공정으로의 원활한 전달을 위해 설계된 간편한 워크플로우입니다.
1. Floor-Level Feeding
Load pellets, flakes, or powders into the convenient floor-level hopper manually or through an automated screw or vacuum loader.
2. Cycloidal Circulation
The central auger screw rapidly elevates materials to the top, dispersing them in an umbrella pattern for thorough, vortex blending.
3. Bottom Discharge
After reaching the preset mixing time, open the manual or pneumatic slide valve to discharge the batch directly into storage bins or packaging bags.
기술 사양
Standard vertical mixer configurations. Custom volumes, higher drive ratings, and custom discharge heights are available upon request.
| 모델 | Batch Capacity | Drive Motor | Spindle Speed | 나사 직경 | Mixing Time | 치수(L×W×H mm) |
|---|---|---|---|---|---|---|
| VM-500 | 500 kg | 3.0 kW | 350 RPM | φ165 mm | 10 – 15 min | 1,200 × 1,300 × 2,050 |
| VM-1000 | 1,000 kg | 4.0 킬로와트 | 320 RPM | φ200 mm | 10 – 15 min | 1,400 × 1,500 × 2,350 |
| VM-1500 | 1,500 kg | 5.5 킬로와트 | 300 RPM | φ240 mm | 12 – 15 min | 1,550 × 1,650 × 2,650 |
| VM-2000 | 2,000 kg | 7.5kW | 280 RPM | φ273 mm | 12 – 18 min | 1,700 × 1,800 × 2,900 |
| VM-3000 | 3,000 kg | 11.0 kW | 260 RPM | φ325 mm | 15 – 20 min | 1,900 × 2,100 × 3,300 |
Swipe horizontally to view the full table.
Model VM-500
- Batch Capacity: 500 kg
- Drive Motor: 3.0 kW
- Spindle Speed: 350 RPM
- 나사 직경: φ165 mm
- Mixing Time: 10 – 15 min
- 치수: 1,200 × 1,300 × 2,050 mm
Model VM-1000
- Batch Capacity: 1,000 kg
- Drive Motor: 4.0 킬로와트
- Spindle Speed: 320 RPM
- 나사 직경: φ200 mm
- Mixing Time: 10 – 15 min
- 치수: 1,400 × 1,500 × 2,350 mm
Model VM-1500
- Batch Capacity: 1,500 kg
- Drive Motor: 5.5 킬로와트
- Spindle Speed: 300 RPM
- 나사 직경: φ240 mm
- Mixing Time: 12 – 15 min
- 치수: 1,550 × 1,650 × 2,650 mm
Model VM-2000
- Batch Capacity: 2,000 kg
- Drive Motor: 7.5kW
- Spindle Speed: 280 RPM
- 나사 직경: φ273 mm
- Mixing Time: 12 – 18 min
- 치수: 1,700 × 1,800 × 2,900 mm
Model VM-3000
- Batch Capacity: 3,000 kg
- Drive Motor: 11.0 kW
- Spindle Speed: 260 RPM
- 나사 직경: φ325 mm
- Mixing Time: 15 – 20 min
- 치수: 1,900 × 2,100 × 3,300 mm
장비 갤러리
Build quality, polished stainless steel mixing barrel, and robust transmission components.
플라스틱 과립 믹서의 작동 및 유지 관리
Frequently asked questions regarding operating procedures, additive mixing, and maintenance.
Vertical Mixer Warranty & Installation
-
1년 제한 보증
Core recycling machinery is covered by a limited warranty for stable startup and long-term operation.
-
설치 및 시운전
We provide remote installation guidance and on-site commissioning and operator training upon request.
지금 문의하세요
To get the latest prices, lead times, and custom configurations, send us a message using the form below.
