Lavagem de garrafas de HDPE Linha de Reciclagem
An automated HDPE bottle washing recycling line engineered for post-consumer resin (PCR) feedstocks, including detergent, milk, shampoo, and household-chemical bottles. Crushing, friction washing, density separation, and thermal drying are synchronised to turn contaminated plastics into clean rHDPE flakes—ready for extrusion, compounding, or direct feed into our Peletizadores de plástico.
Modular infeed, high-torque wet crushing, optional hot washing, and closed-loop water treatment empower you to achieve premium flake purity even with heavy labels, caps, sand, and chemical residues in the stream.

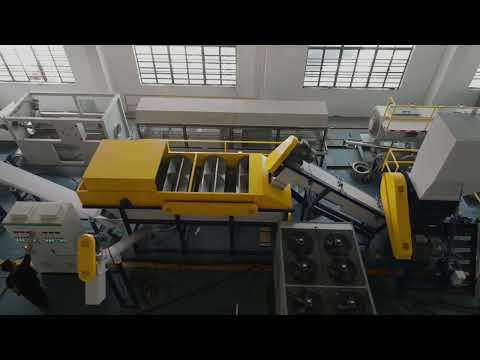

Explore the Complete HDPE Bottle Washing Recycling Line
Why Our HDPE Bottle Recycling System Excels
- Produção estável, custos operacionais reduzidos
O transporte contínuo e as receitas de PLC estabilizam a produção, otimizando o consumo de energia e água.
- Limpeza profunda para remoção de resíduos de garrafas
Wet crushing, friction scrubbing, and optional hot washing remove oils, detergents, and odours to deliver cleaner rHDPE flakes.
- Label & Light Contaminant Removal
Air separation and screening reduce labels, films, paper, and dust—improving purity and downstream processing stability.
- Pronto para tratamento de água em circuito fechado
Projetado para integrar sistemas de filtragem e recirculação, reduzindo o descarte e simplificando o cumprimento das normas.
Standard HDPE Bottle Washing Process Flow
From baled post-consumer bottles to purified rHDPE flakes—each stage is configured to your contamination level and target flake purity.
- Debaling & Pre-sorting
Abra os fardos, remova metais/impurezas de tamanho excessivo e estabilize a alimentação contínua.
- Trituração úmida
Reduce bottles to uniform flakes while flushing loose residues, sand, and dirt in a high-water-volume chamber.
- Lavagem por fricção
High-speed mechanical scrubbing (over 1000 RPM) aggressively detaches labels, glued paper fibres, and stubborn dirt.
- Lavagem a quente (opcional)
Chemical thermal washing softens glues and extracts oils, dairy fats, and stubborn detergents, ensuring food-grade or premium rHDPE.
- Separação de Afundamento-Flutuação
Density separation floats the targeted HDPE/PP while sinking heavier foreign plastics like PET, PVC, and metals.
- Dewatering & Thermal Drying
Automated centrifugal dewatering coupled with hot air drying reduces surface moisture to below 1%, preparing flakes for silos.
Inside the Line: Core Recycling Equipment Composition
A professional HDPE bottle washing recycling line is constructed from heavy-duty modules—each engineered for maximum decontamination, rigorous density separation, and energy-efficient drying.
| Componente de equipamento | Função primária |
|---|---|
| Abridor de fardos / Esteira de alimentação | Abre os fardos (opcional) e garante uma alimentação estável e contínua na linha. |
| Pré-lavadora / Trommel (Opcional) | Remove areia, pedras e terra solta logo no início para proteger as máquinas a jusante e reduzir a carga de água. |
| Triturador/Granulador Úmido | Reduz o tamanho das garrafas e, ao mesmo tempo, elimina a contaminação solta para uma lavagem subsequente eficiente. |
| Arruela de fricção | A lavagem em alta velocidade remove resíduos persistentes, fibras de papel e sujeira remanescente dos flocos. |
| Lavadora de água quente (opcional) | Improves decontamination for oily or detergent-heavy bottles using heated water and controlled chemistry. |
| Tanque de separação Sink-Float | Separação por densidade, onde o HDPE/PP normalmente flutua enquanto o PET/PVC e contaminantes pesados afundam. |
| Rinse & Transfer Screw | Enxágua os flocos e transfere o material entre os estágios, mantendo um tempo de residência constante. |
| Desidratação centrífuga | Remove mecanicamente a água da superfície para reduzir a demanda de energia para secagem térmica. |
| Thermal Dryer & Air Transport | A secagem com ar quente reduz o teor de umidade dos flocos, permitindo seu transporte para o armazenamento. |
| Classificador Zig-Zag / Ar | Remove rótulos, películas e frações leves para melhorar a pureza final. |
| Silo / Estação de Ensacamento | Armazena e embala os flocos de PEAD acabados para facilitar a logística e garantir o fornecimento estável às linhas de granulação. |
| Sistema de controle CLP | Controle centralizado HMI/PLC para intertravamentos, receitas, alarmes e diagnóstico remoto opcional. |
Supported Materials & Incoming Feedstock
- PCR HDPE Bottles
Milk jugs, detergent bottles, heavy-duty shampoo containers, and other daily chemical packaging laden with residues.
- Mixed Material Bales
Handles bales containing labels, caps, rings, and mixed plastics by efficiently classifying PP/PE from heavier contaminants.
- Recipientes rígidos de PP/PE
The system's robust crushers simultaneously accommodate jerrycans, drums, and rigid plastic packaging fractions.
Commercial Value of Recycled rHDPE Flakes
Producing high-purity rHDPE flakes unlocks highly profitable resale markets, secures circular supply chains, and fulfills corporate ESG and packaging recycled-content mandates.
- rHDPE Flake & Pellet Producers
Produce cleaner, more consistent flakes to supply extrusion/pelletising lines for packaging, pipe, sheet, and injection-grade compounds.
- Toll Washing & Contract Processing
Run multi-customer bottle streams with traceable recipes and repeatable quality targets—ideal for recyclers scaling capacity.
- Municipal & MRF Upgrading
Upgrade mixed bottle streams into higher-value HDPE flakes, improving diversion rates and commodity resale value.
- Brand PCR & ESG Supply
Support recycled-content targets by supplying stable PCR HDPE feedstock for blow-moulding and injection applications.
Future Innovations in HDPE Bottle Recycling
- Inteligência Avançada
Integration of AI and IoT for smarter process control, predictive maintenance, and data-driven optimisation.
- Eficiência Máxima
Continuous innovation to improve throughput capacity while simultaneously reducing energy consumption and operational costs.
- Sustentabilidade ambiental
Adoption of eco-friendly cleaning agents and advanced water filtration systems, aiming for near-zero discharge.
- Modularidade e Personalização
Emphasis on modular designs allowing for easier customisation, scalability, and upgrades to meet evolving client needs.
Tangible Environmental & Economic Benefits
- Reduz o Resíduo Plástico
Significantly diminishes the volume of plastic ending up in landfills or polluting natural ecosystems, helping to alleviate environmental strain.
- Conserva Recursos Naturais
Lessens the demand for virgin petroleum-based resources, reducing the carbon footprint associated with new plastic production.
- Promove uma Economia Circular
Transforms waste materials back into valuable resources, encouraging sustainable manufacturing and consumption patterns.
- Alto Retorno sobre o Investimento
Generates revenue from the sale of recycled flakes and lowers disposal costs, delivering significant economic benefits and a swift ROI.
Please note: Equipment configuration and the specific process flow will be carefully optimised according to the characteristics of your raw materials and desired output.
FAQs on HDPE Bottle Washing Recycling
It is designed for post-consumer HDPE bottles (milk, detergent, shampoo, household chemicals), typically with labels and closures attached. Feedstock can be baled or loose, and we can tailor infeed and washing stages based on contamination level and target purity.
Multi-stage friction washing, optional hot washing, and density separation reduce labels, oils, and residues. Final cleanliness depends on incoming material, but the line is configured to deliver low contamination and low moisture flakes for pelletising or compounding.
Yes. Air classification targets labels and light fractions, while sink-float separation helps remove heavier plastics (typically PET/PVC) from HDPE/PP. For higher-purity requirements, optional sorting and metal detection can be integrated upstream.
Central PLC with touchscreen HMI provides recipe control, safety interlocks, and real-time monitoring of water, energy, and throughput. Remote diagnostics and data logging can be included for predictive maintenance.
Washing Line Technical Parameters
Specific technical parameters can vary based on the model and customisation. For detailed specifications, please refer to individual product sheets or contact us.
| Capacidade de entrada | 500kg/hora | 1000kg/hora | 1500kg/hora | 2.000 kg/h |
|---|---|---|---|---|
| Espaço necessário | 42m×10m×6m | 50m×15m×6m | 55m×16m×6m | 60m×18m×6m |
| Operadores | 3-4 pessoas | 5-6 pessoas | 5-6 pessoas | 5-6 pessoas |
| Potência de instalação | 150-200kW | 250-300kW | 370kW | 450-500kW |
| Circulação de Água （T/H） | 2 | 3 | 4 | 5 |
Nosso Compromisso com um Futuro Mais Limpo
The HDPE bottle washing recycling line plays an indispensable role in tackling plastic pollution and supporting the circular economy. As technology advances, these lines will continue to improve in efficiency, automation, and water management—helping recyclers deliver higher-quality PCR materials.
"Thanks to our innovative washing technology, we provide reliable and remarkably efficient recycling solutions. Our unwavering commitment ensures our processes are environmentally friendly, sustainable, and consistently deliver superior quality results."
Enquiries & Quotations
Garantia: All HDPE bottle washing recycling systems include a 1-year limited warranty and lifetime technical support.
Share your bottle type, contamination profile (labels, caps, sand, oil/detergent), and throughput target. We will configure the optimal washing line with layout, utilities, timeline, and investment details.
